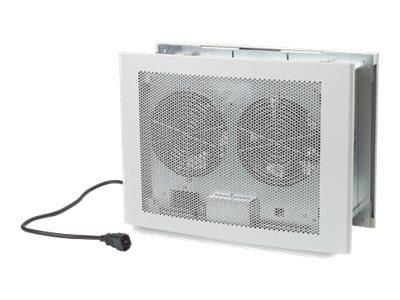

Wiring Closet Ventilation Unit 100-240V 50/60HZ
Part# ACF301
EAN:0731304247425
APC ACF301 - Cooling fan - wall mounted - white
Native product specifications. The product description originates from Cnet. Foxway Distribution accepts no responsibility for error or misinformation in product descriptions from Cnet.
Product specifications
| Product Description | APC ACF301 - cooling fan |
| Manufacturer Warranty | 2 years |
| Dimensions (WxDxH) | 43.4 cm x 17.8 cm x 32.5 cm |
| Weight | 10.91 kg |
| Product Type | Cooling fan |
| Colour | White |
| Functions | Cooling |
| Placing / Mounting | Wall mounted |
| Airflow | 475 cu.m/h |
| Maximum Noise Level | 60 dB |
| Plug Type | NEMA 5-15 |
| Sound Pressure Level (SPL) | 60 dB |
General features
| Product Type | Cooling fan |
| Form Factor | Wall mounted |
| Functions | Cooling |
| Airflow | 475 cu.m/h |
| Colour | White |
Warranty
| Warranty | 2 years |
Compliance
| Compliant Standards | VCCI, cUL, EN55024, FCC Part 15 B Class A, EN 55022 Class A |
Power
| Power Consumption | 85 W |
| Voltage | 100 - 230 V / 50/60 Hz |
| Rated Current | 2 A |
| Plug Type | NEMA 5-15 |
| Max Power Consumption | 85 W |
Physical dimensions
| Width | 43.4 cm |
| Depth | 17.8 cm |
| Height | 32.5 cm |
| Weight | 10.91 kg |
Shipping dimensions
| Width (Shipping) | 58.4 cm |
| Depth (Shipping) | 48.3 cm |
| Height (Shipping) | 34.3 cm |
| Weight (Shipping) | 14.91 kg |
PIMItemProductDetailedSpecH0000377
| Sound Pressure Level (SPL) | 60 dB |
| Maximum Noise Level | 60 dB |
PIMItemProductDetailedSpecH0000629
| Minimum Width | 36.1 cm |
| Minimum Depth | 26.7 cm |
Specifications
In the event of a fan failure, the remaining fan (s) will continue to operate. It maximizes system availability by providing early warning of required fan or filter replacement.
It provides remote notification of failures when used with APC environmental monitoring unit or system. Flexible design allows for both dry wall and ceiling mount installations.
- Fault-tolerant fan system
In the event of a fan failure, the remaining fan(s) will continue to operate. - Predictive failure notification
It maximizes system availability by providing early warning of required fan or filter replacement. - LED status indicators
Quickly understand unit and power status with visual indicators. - Dry contact output
It provides remote notification of failures when used with APC environmental monitoring unit or system. - Multiple mounting methods
Flexible design allows for both dry wall and ceiling mount installations. - Easy to install
Innovative design allows for fast, easy installation by almost anybody. - Hardwire capable
It is for installations where hard wiring is required or preferred. - Architecturally neutral
Unobtrusive design and coloring, blends in with the surroundings.
