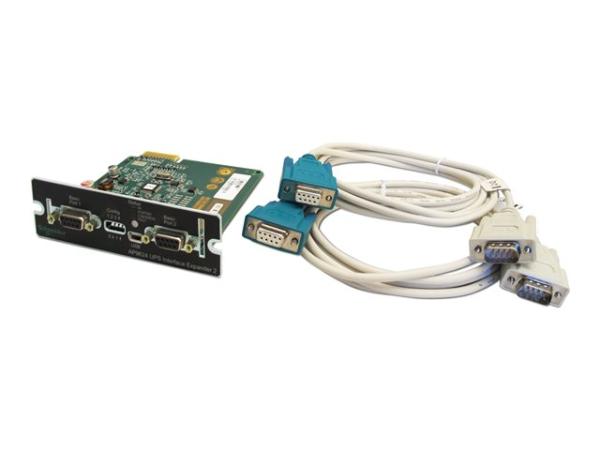

APC UPS Interface Expander 2
Part# AP9624
EAN:0731304314974
Schneider AP9624 UPS Interface Expander 2 - Remote management adapter - SmartSlot - RS-232 x 2
Native product specifications. The product description originates from Cnet. Foxway Distribution accepts no responsibility for error or misinformation in product descriptions from Cnet.
Product specifications
| Product Description | Schneider AP9624 UPS Interface Expander 2 - remote management adapter - SmartSlot - RS-232 x 2 |
| Form Factor | Plug-in module |
| Manufacturer Warranty | 2-year warranty |
| Dimensions (WxDxH) | 12.1 cm x 11.4 cm x 3.8 cm |
| Weight | 70 g |
| Device Type | Remote management adapter |
| Data Link Protocol | RS-232 |
| Interface (Bus) Type | SmartSlot |
| Ports | RS-232 x 2 |
General features
| Device Type | Remote management adapter |
| Form Factor | Plug-in module |
| Interface (Bus) Type | SmartSlot |
Ports
| Interfaces | 2 x management - 9 pin D-Sub (DB-9) |
Warranty
| Service & Support | Limited warranty - 2 years |
Network
| Ports | RS-232 x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232 |
| Features | Firmware upgradable |
Compliance
| Cables Included | 2 x serial cable (external) |
| Compliant Standards | C-Tick, EN55022 Class A, EN55024, FCC Part 15 A, IC, IEC 62040-2, China RoHS, REACH, RoHS |
HDD / SSD tolerance
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 95% |
Physical dimensions
| Width | 12.1 cm |
| Depth | 11.4 cm |
| Height | 3.8 cm |
| Weight | 70 g |
Specifications
UPS Management SmartSlot offer with serial shutdown support of up to two additional devices such as Servers and Network Storage Devices.
- Additional Device Shutdown
Supports graceful shutdown for up to two additional devices such as servers and network storage devices connected serially. - PowerChute Business Edition OS Compatibility
This software supports numerous operating systems and processors. For further information, please click here . - UPS Compatibility
Compatible with all Smart-UPS as well as the Symmetra Power Array, LX and RM UPS ranges. - USB mini B port for Firmware Upgrade
The UPS Interface Expander 2 firmware can be upgraded using the USB mini B port
