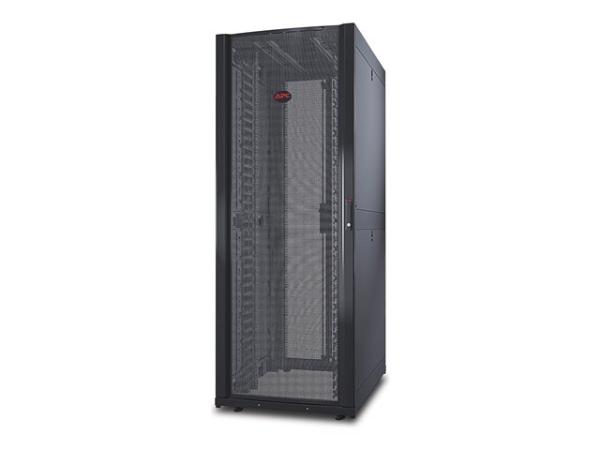

NetShelter SX 42U 750mm Wide x 1070mm
Part# AR3140
EAN:0731304275572
APC NetShelter SX Networking Enclosure with Sides - Rack - black - 42U - TAA Compliant - for P/N: SC500RM1U, SCL500RM1UNC, SMTL750RM2UC, SMX2KRMLVNCUS, SMX3000HVTUS, SRT2200RMXLA-NC
Native product specifications. The product description originates from Cnet. Foxway Distribution accepts no responsibility for error or misinformation in product descriptions from Cnet.
Product specifications
| Product Description | APC NetShelter SX Networking Enclosure with Sides - rack - 42U - TAA Compliant |
| Manufacturer Warranty | 5-year warranty |
| Dimensions (WxDxH) | 75 cm x 107 cm x 199 cm |
| Weight | 156 kg |
| Product Type | Rack |
| Height (Rack Units) | 42U |
| Colour | Black |
| Designed For | P/N: SC500RM1U, SCL500RM1UNC, SMTL750RM2UC, SMX2200R2HVNC, SMX2KRMLVNCUS, SMX3000HVTUS, SRT10KRMXLT30, SRT2200RMXLA-NC, SRT8KRMXLT, SRT8KRMXLT-IEC, SUA1000RMI2U, SUA2200RMXLI3U, SUA5000RMI5U, SYH2K6RMT-P1, SYH2K6RMT-TF3, SYH4K6RMT-P1, SYH4K6RMT-TF3, SYH6K6RMT, SYH6K6RMT-P1 |
| TAA Compliant | Yes |
General features
| Product Type | Rack |
| Height (Rack Units) | 42U |
| Width | 75 cm |
| Depth | 107 cm |
| Height | 199 cm |
| Weight | 156 kg |
| Colour | Black |
Warranty
| Service & Support | Limited warranty: - 5 years |
Compliance
| Weight Limit | 1363 kg |
| Mounting Kit | Included |
| Compliant Standards | EIA-310-E, RoHS, UL 60950-1, BAA |
| TAA Compliant | Yes |
Compatible with
| Designed For | P/N: SC500RM1U, SCL500RM1UNC, SMTL750RM2UC, SMX2200R2HVNC, SMX2KRMLVNCUS, SMX3000HVTUS, SRT10KRMXLT30, SRT2200RMXLA-NC, SRT8KRMXLT, SRT8KRMXLT-IEC, SUA1000RMI2U, SUA2200RMXLI3U, SUA5000RMI5U, SYH2K6RMT-P1, SYH2K6RMT-TF3, SYH4K6RMT-P1, SYH4K6RMT-TF3, SYH6K6RMT, SYH6K6RMT-P1 |
Specifications
Designet til nemt at kunne passere gennem standarddøråbninger. Netværksrackdesignet muliggør hurtigere implementering af netværksswitche og optimeret rackmonteringsplads, der er designet specifikt til kabel- og luftstrømsstyring af store kernenetværksswitche og Storage Area Network (SAN)-instruktører.
- Cable protection and pass-through
Smooth plastic fingers provide proper bend radius. - High density cable management
The vertical mounting rails are opened up for increased cable access and the roof design has large open areas for cable entry/exit from the enclosure. - Improved cable access
Maintain and organize large cable bundles for improved efficiency with open vertical mounting rails and large cable openings in roof. - Integrated high density cable management
Decrease installation time while supporting the cabling needs of large networking switches. - Optimized enclosure design for side-to-side airflow
Airflow management panels, left vertical mounting rail, and side airflow duct kit ensure proper side-to-side airflow to the networking switches from the cold aisle and provide isolation of hot air preventing it from re-entering the cold aisle. Additionally, the front left vertical mounting rail acts as an air block for exhaust air from networking switches.
