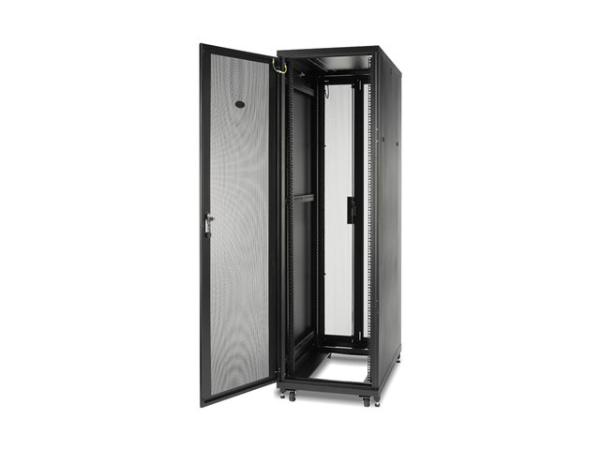

NetShelter SV 42U 600mm Wide x 1060mm
Part# AR2400
EAN:0731304302025
APC NetShelter SV - Rack cabinet - black - 42U - 19" - for P/N: SMTL750RM2UC, SMX1000CUS, SMX1500RM2UCNCUS, SMX2KR2UNCX145, SMX3000HVTUS, SMX750C
Native product specifications. The product description originates from Cnet. Foxway Distribution accepts no responsibility for error or misinformation in product descriptions from Cnet.
Product specifications
| Product Description | APC NetShelter SV - rack - 42U |
| Manufacturer Warranty | 5-year warranty |
| Features | Lockable front door, lockable rear door, keyed alike, lockable side panel, casters |
| Dimensions (WxDxH) | 60 cm x 106 cm x 205.7 cm |
| Weight | 112.2 kg |
| Product Type | Rack |
| Height (Rack Units) | 42U |
| Colour | Black |
| Rack Size | 19" |
| Package Content | Rack levelling feet, 4 hold down brackets, side panels, front door, rear door, roof, baying hardware |
| Designed For | P/N: SMC1000-2UC, SMTL750RM2UC, SMX1000CUS, SMX1500RM2UCNCUS, SMX2000RMLV2UNC, SMX2200R2HVNC, SMX2KR2UNCX145, SMX3000HVTUS, SMX750C, SRT1000RMXLA-NC, SRT10KRMXLT, SRT10KRMXLT-5KTF2, SRT10KXLT, SRT10KXLT30, SRT5KRMXLT-5KTF, SURT15KRMXLT, SYA16K16RMP, SYBFXR9I, SYH2K6RMT-TF3, SYH4K6RMT-TF3 |
| Rack Type | Cabinet |
General features
| Product Type | Rack |
| Rack Type | Cabinet |
| Package Content | Rack levelling feet, 4 hold down brackets, side panels, front door, rear door, roof, baying hardware |
| Rack Size | 19" |
| Height (Rack Units) | 42U |
| Width | 60 cm |
| Depth | 106 cm |
| Height | 205.7 cm |
| Weight | 112.2 kg |
| Colour | Black |
Warranty
| Service & Support | Limited warranty: parts and labour - 5 years |
Compliance
| Weight Limit | 1002.27 kg |
| Mounting Kit | Included |
| Features | Lockable front door, lockable rear door, keyed alike, lockable side panel, casters |
| Compliant Standards | EIA-310-E, RoHS, UL 60950-1, REACH |
Compatible with
| Designed For | P/N: SMC1000-2UC, SMTL750RM2UC, SMX1000CUS, SMX1500RM2UCNCUS, SMX2000RMLV2UNC, SMX2200R2HVNC, SMX2KR2UNCX145, SMX3000HVTUS, SMX750C, SRT1000RMXLA-NC, SRT10KRMXLT, SRT10KRMXLT-5KTF2, SRT10KXLT, SRT10KXLT30, SRT5KRMXLT-5KTF, SURT15KRMXLT, SYA16K16RMP, SYBFXR9I, SYH2K6RMT, SYH2K6RMT-P1, SYH2K6RMT-TF3, SYH4K6RMT-P1, SYH4K6RMT-TF3, SYH6K6RMT-P1 |
Specifications
Universal IT enclosure for low to medium density server and networking applications. Compact width to optimize data center space. 42U height to easily roll through doorways.
- Cable access openings and panels
Large cable access slots in the roof provide access for overhead cable egress. The bottom design allows for unobstructed cable access through a raised floor. - Perforated front and rear doors
Perforated front and rear doors provide ample ventilation for rack-mount equipment. - Quick release doors with spring pin design
Front door can be moved to the opposite side or interchanged with rear doors. Doors are easily removed with simple spring hinge pin design. - Removable full-height side panels
Side panels are removable for ease of access to the enclosure during equipment installation and setup. Side panels are lockable utilizing a single key that is also usable on the front and rear doors. - Enclosure adjustment tools and hardware provided
All enclosures are provided standard with hardware bag that includes hardware for mounting IT equipment and tools for simple enclosure adjustment. - Adjustable mounting rails with simple alignment
The vertical mounting rails can be adjusted in 0.4-inch increments covering virtually any mounting requirement for IT equipment. Align the mounting rails with the opposite side of the enclosure by identifying the hole position used. U positions are numbered front and back for rapid installation of equipment. - Split rear doors
Split rear doors improve access and serviceability to rear of rack mounted equipment. The split rear doors help to maximize floor space. - Standard-profile castors and adjustable leveling feet from underneath
Enclosures are shipped standard with both leveling feet and castors. Leveling feet can be adjusted using a wrench from underneath the enclosure. - Joining hardware provided
Enclosures include pre-installed joining hardware for joining enclosures in a row and provide additional stability to the enclosure. Enclosures are pre-installed with joining brackets for joining enclosures on 600-mm centers. - Integrated electrical grounding
The roof, side panels and front and rear doors are grounded to the frame of the enclosure. Eight additional electrical grounding inserts are located on the frame for external grounding.
