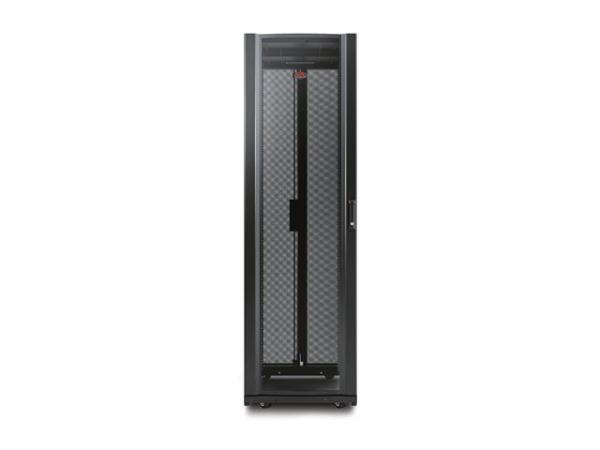

APC 42U 600mm Wide x 825 Deep Enclosure with Sides
Part# AR3810
EAN:0731304281436
APC NetShelter AV Enclosure with Sides and 10-32 Threaded Rails - Rack - black - 42U - for P/N: SMTL750RM2UC, SMX2200R2HVNC
Native product specifications. The product description originates from Cnet. Foxway Distribution accepts no responsibility for error or misinformation in product descriptions from Cnet.
Product specifications
| Product Description | APC NetShelter AV Enclosure with Sides and 10-32 Threaded Rails - rack - 42U |
| Manufacturer Warranty | 5-year warranty |
| Features | Lockable front door, lockable side panel |
| Dimensions (WxDxH) | 60 cm x 82.5 cm x 199 cm |
| Weight | 120 kg |
| Product Type | Rack |
| Height (Rack Units) | 42U |
| Colour | Black |
| Package Content | Key, rack casters kit, rack levelling feet, rack door, rack side panel |
| Designed For | P/N: SMTL750RM2UC, SMX2200R2HVNC |
General features
| Product Type | Rack |
| Package Content | Key, rack casters kit, rack levelling feet, rack door, rack side panel |
| Height (Rack Units) | 42U |
| Width | 60 cm |
| Depth | 82.5 cm |
| Height | 199 cm |
| Weight | 120 kg |
| Colour | Black |
Warranty
| Service & Support | Limited warranty: - 5 years |
Compliance
| Weight Limit | 1364 kg |
| Mounting Kit | Included |
| Features | Lockable front door, lockable side panel |
| Compliant Standards | EIA-310-E, RoHS, UL 60950-1, REACH |
Compatible with
| Designed For | P/N: SMTL750RM2UC, SMX2200R2HVNC |
Specifications
The APC NetShelter SV is the IT enclosure you have become familiar with from APC but now with basic functionality and features provided as a cost-effective solution. The NetShelter SV maintains a strong focus on cooling, power distribution, and cable management to provide a reliable rack-mounting environment for mission-critical equipment but with optional features such as side panels, casters, and rear cable channel that reduces the cost of the base enclosure.
- Cable access openings and panels
Large cable access slots in the roof provide access for overhead cable egress. The bottom design allows for unobstructed cable access through a raised floor. - Perforated front and rear doors
Perforated front and rear doors provide ample ventilation for rack-mount equipment. - Quick release doors with spring pin design
Front door can be moved to the opposite side or interchanged with rear doors. Doors are easily removed with simple spring hinge pin design. - Removable full-height side panels
Side panels are removable for ease of access to the enclosure during equipment installation and setup. Side panels are lockable utilizing a single key that is also usable on the front and rear doors. - Split rear doors
Split rear doors improve access and serviceability to rear of rack mounted equipment. The split rear doors help to maximize floor space. - Standard-profile castors and adjustable leveling feet from underneath
Enclosures are shipped standard with both leveling feet and castors. Leveling feet can be adjusted using a wrench from underneath the enclosure. - Integrated electrical grounding
The roof, side panels and front and rear doors are grounded to the frame of the enclosure. Eight additional electrical grounding inserts are located on the frame for external grounding.
